Trailer Stage Unopened Dimension : 6530x2230x3100mm (length x width x height)
Stage Floor Length and Depth：6000x4710mm
Installation Time:20 Min
Personal Required:2 people
Audiance Covered：100~1000people
Applicable scene:Church Crusade Events,Political Parties Campaigns Elections,Brands promotion and Exhibitions,Concerts Festivals,Sports Event Management,Advertising Companies e.t.c.
| Trailer Stage Unopened | Dimension | 6530x2230x3100mm (length x width x height) | Roof | Length and Depth | 6670x5400mm（ 21'87''x17'71''） |
| 21'42''x7'31''x10'17'' (length x width x height) | Height from Roof to Stage Floor/Ground | 3500mm/4400mm | |||
| Weight | 3250kg 7150lbs | Lighting Truss Number | 6 | ||
| Stage Floor | Length and Depth | 6000x4710mm（ 19'68''x15'51''） | Lighting Bearing Capacity | 100kg per light truss | |
| Height from Ground | 900mm 2'95'' | Total Roof Capacity | 600kg | ||
| Design Live Load | 350kg/m2 | Practical Aspects | Hauking Mode | Bumper Hitch | |
| Structure | Pro Stage Birchen （Plywood+Steel） | Gust Wind Resistance | 67mph without windwall,5467mph with windwall |

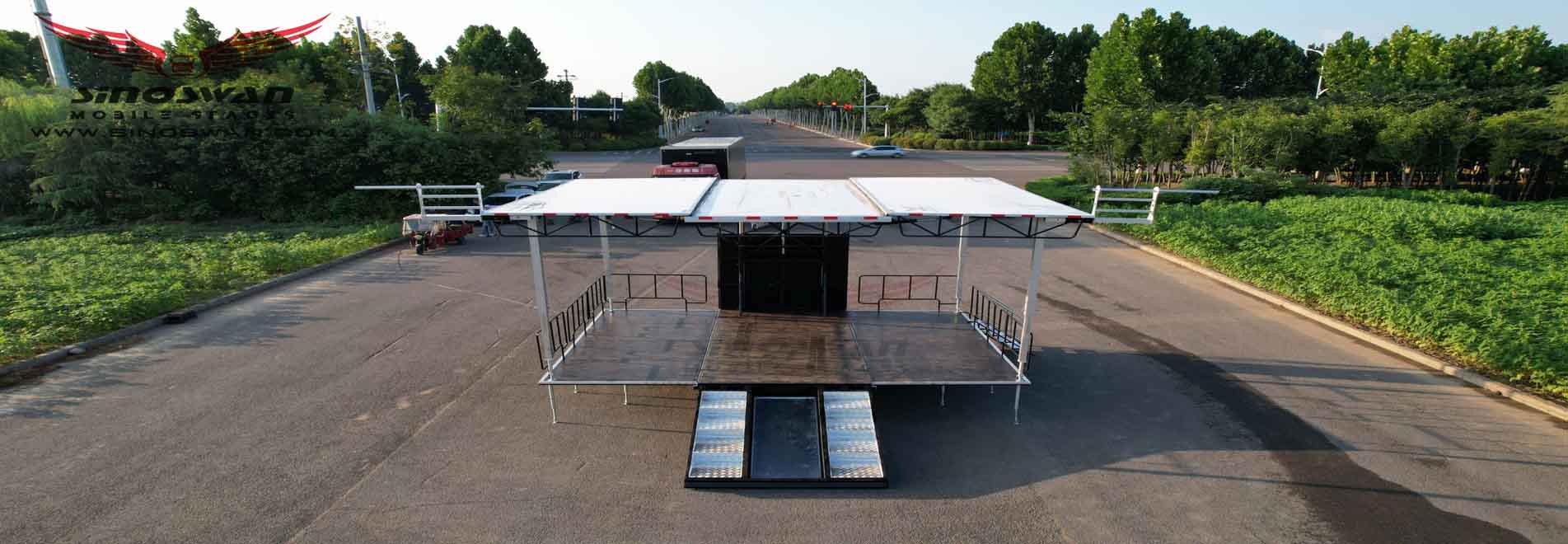

The Sinoswan mobile stage trailer combines functionality, aesthetics and convenience to elevate any event.
Hydraulic system is the most core technology, SINOSWAN customized hydraulic systems feature precisely designed cylinders and components that provide optimal flow and safe, timely operations. Safety valves prevent unwanted liquid flow and movements, ensuring ease of use and minimal maintenance requirements.
The innovative design of SINOSWAN Mobile Stages leads to superior road handling and increased safety. Each stage is engineered to maintain its structural integrity and functionality, minimizing the impact of travel wear and environmental factors over time. Design intention: Any location can be quickly turned into a professional event space, to bring extraordinary experience to the public.
Internally fitted hydraulic locks activate in case of tubing rupture, ensuring the stage remains securely in position.Lifted by four oil cylinders with synchronous motors, ensuring less than 1% variance in timing for higher durability and safety.Safety bolts and a mechanical safety pin on guide posts provide double protection, securing the ceiling even under abnormal conditions.
Our hydraulic system ensures a safe, stable, and reliable operation, with all machine actions controlled via a wireless remote control for easy operation and excellent visibility.The entire unfolding and folding process is automated,This reduces manual operation and improves timeliness and convenience.
Alex's selection of high-quality German AL-KO, BPW, or Fuwa axles underpins the chassis, optimizing the load-bearing capacity. This strategic choice enhances the vehicle's stability and structural strength, ensuring dependable performance and durability year after year.
SINOSWAN stage floors use professional birch plywood framed with steel and enhanced with waterproof, anti-skid, and fireproof treatments. At thicknesses of 18mm and 12mm, these floors withstand long-term outdoor exposure to elements like wind, rain, and sun without cracking or deforming.
Wings and roof panels feature a single complete piece, sandwich design with fiberglass and a honeycomb core, blending aesthetic appeal with superior durability. This integrated structure provides robust protection from harsh weather, absorbs structural shifts, and resists road vibrations, ensuring the panels remain safe, damage-free, and visually appealing over time.
The mobile stage trailer is available in different configurations to cater to various event requirements:
◆Container Type: Compact and highly mobile for urban environments.
◆Semi-Trailer Type: Larger space for grand events with full hydraulic expansion.
◆Truck Type: All-in-one design for flexibility and convenience.
To ensure peace of mind, the Sinoswan mobile stage comes with: - A five-years warranty: on key components.
◆Lifetime technical support service: ensuring uninterrupted functionality.
◆Comprehensive Chinese and English manuals: for easy operation.
◆Free training sessions, empowering customers to utilize the banquet to its fullest poten.
Sinoswan mobile stage integrates lighting, sound, LED screen and generator into the body to achieve a one-stop solution for outdoor activity scenes.
The voltage input range we provide is 110V~430V, customers can choose according to their own country. The type of socket provided is versatile and suitable for any country in the world.
All lamps are professional stage performance level, suitable for all-weather road shows, concerts and other use scenes. Professional standard lighting configuration based on stage size and event scene.
According to the size of the stage, the event scene and the number of audience, professional standard sound configuration is provided.
Sinoswan mobile stage integrates lighting, sound, LED screen and generator into the body to achieve a one-stop solution for outdoor activity scenes.
Led diplay Screen: According to the size of the stage, the event scene and the number of viewers, to provide professional standard LED display configuration.
Generator: Divided into two types: generator trailer, generator room, our generator is a British brand, the quality is absolutely guaranteed.
Traction type: Through the traction head to achieve the free movement of the mobile stage, there are usually two types: SUV/One ton Pickup.
The Sinoswan Mobile Stage is available in different configurations to cater to various event requirements.
Compact and highly mobile for urbon environments.
Larger space for grand events with full hydraulic expansion.
All-in-one design for flexibility and convenience.
The Sinoswan Mobile Stage Trailer is versatile, making it an ideal choice for various events and business occasions, including: Church Crusade Events,Political Parties Campaigns Elections,Brands promotion and Exhibitions,Concerts Festivals,Sports Event Management,Advertising Companies,and more.
Five-year warranty
Lifelong technical support service
Chinese and English manuals
Free training
