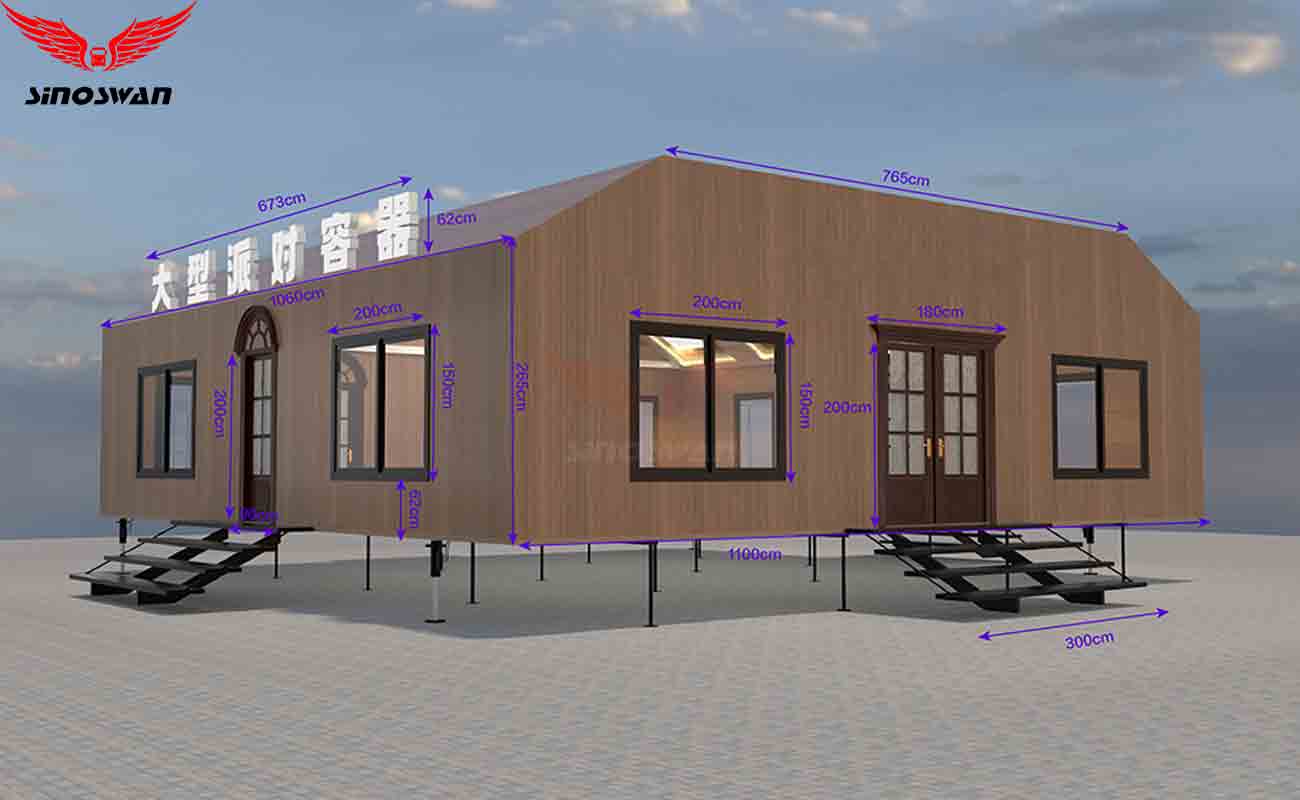

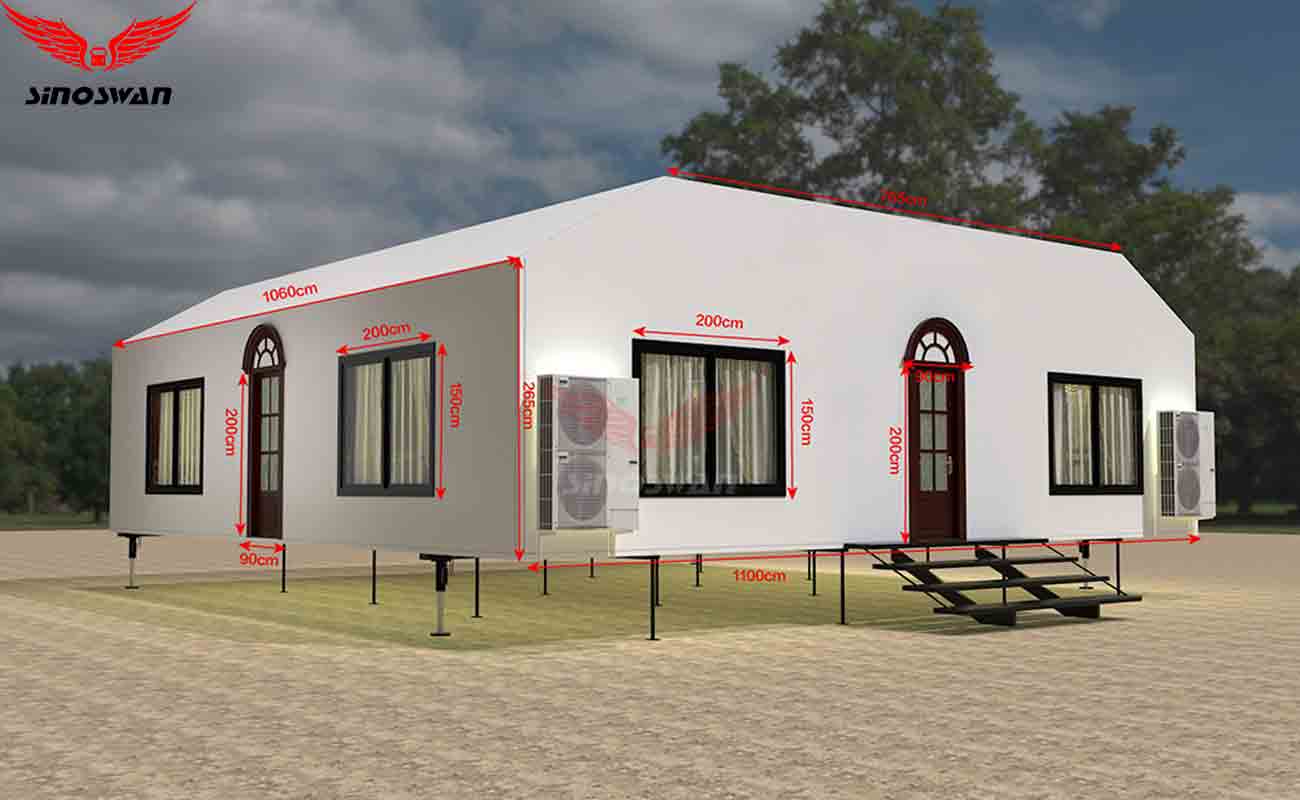

Open Dimension: 13700x11900x3800mm (length x width x height)
Open Space:164m2
Seating capacity:200 people
Set Up Time:18 minutes
decorative style: Vienna, Blue Ocean One, Fantasy 5D
applicable scene:Wedding,Bussiness nagotiation,Mobile supermarket, School celebration,Food and accommodation at construction sites, Large outdoor gatherings e.t.c.
| Model | SBT1512 | Expanded Area | 164m2 |
| Table involved | 1.4 m table x 20 | Installation time | 18 minutes |
| Staircase specifications | 2750x2750mm (length x width) | Personnel Required | 2 people |
| Window specifications | 1500x2000mm (height x width) | Carrying capacity | 500kg/m2 |
| Plate specifications | 3mm thick wood veneer board | Driven Type | Traction |
| Tire Specification | 12R22.5 diameter 1070mm | Voltage and frequency | 220v, 50hz/380v, 50hz |
| Closed Dimension | 15000x2800x4250mm (length x width x height) | Power supply mode | External power supply or vehicle generator |
| Open Dimension | 13700x11900x3800mm (length x width x height) | Capacity | 200 people |

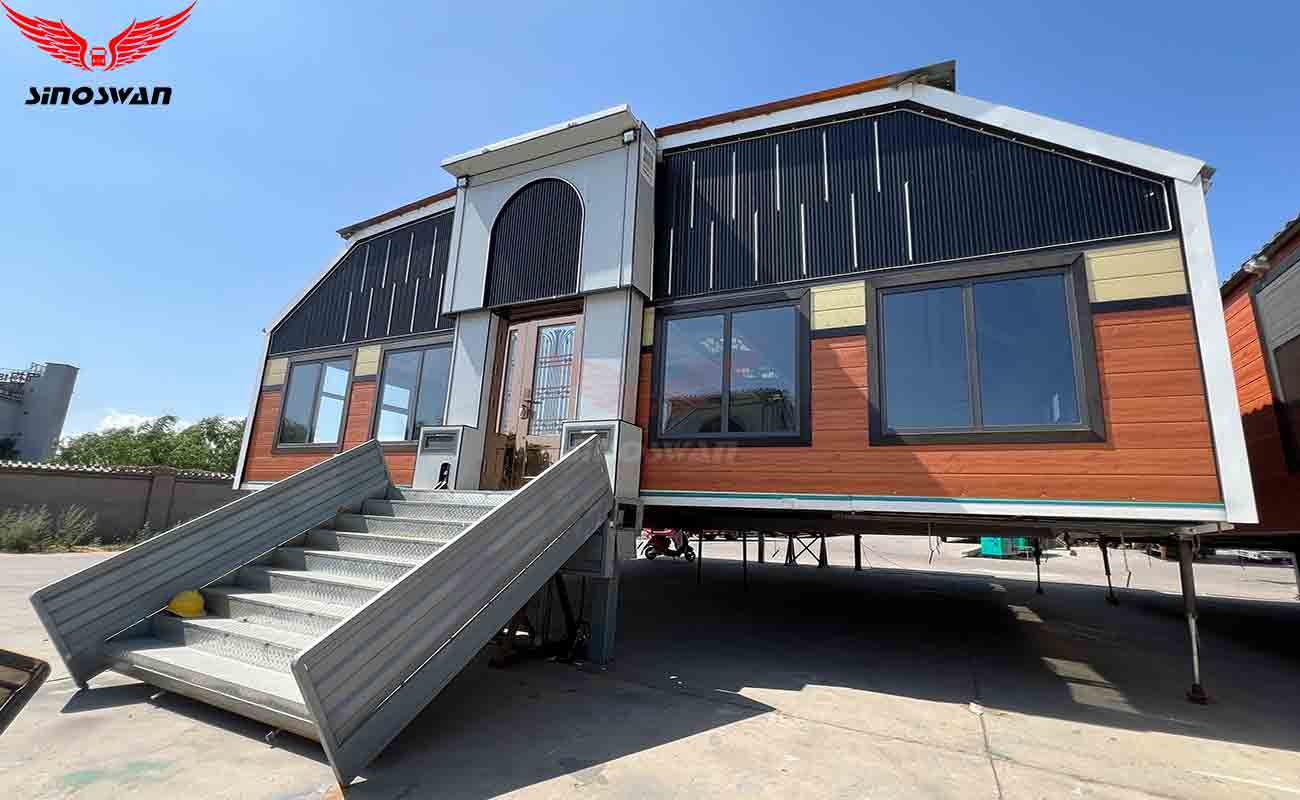

The Sinoswan Banquet RV is the epitome of modern mobile luxury, combining functionality, aesthetics, and convenience to elevate any event.
◆The Sinoswan Banquet features cutting-edge hydraulic technology, enabling seamless expansion on both sides and incorporating a five-piece lifting mechanism. This technology enhances operational efficiency, allowing the banquet hall to transform into a spacious and functional event venue in just 18 minutes.
◆The hydraulic system ensures smooth and stable operation, making it easy to set up and fold, saving time and labor.
◆The basic frame structure of the Sinoswan banquet car is usually constructed with materials such as square pipe, channel steel and I-steel. This frame can not only withstand large loads, but also has good bending resistance, ensuring the stability and safety of the vehicle in the process of moving.
◆These metal materials are connected to each other through welding and other processes to form the basic skeleton of the banquet car, thereby ensuring the stability and durability of the overall structure.
◆The Sinoswan "sandwich" body structure consists of the exterior Plate, sandwich material and internal plate three kinds of materials superimposed combination.
◆Exterior panels are usually made of high-strength, lightweight materials such as glass fiber reinforced plastic or aluminum to protect the body protected from external influences.
◆Sandwich material is generally selected polystyrene foam plastic board, responsible for insulation and sound insulation function.
◆The interior panels make the interior environment more comfortable and easy to clean and maintain.
◆Chassis selection and modification: according to the design requirements to choose the appropriate vehicle chassis, such as truck chassis, trailer chassis, etc., and modify the chassis.
◆Body skeleton manufacturing: the use of high-strength steel or aluminum alloy materials to make the body skeleton, to ensure the strength and stiffness of the body.
◆Body skin installation: body skin is installed on the body skeleton, generally using aluminum plate, steel plate and other light materials.
◆The Sinoswan Banquet is a mobile luxury venue tailored for all kinds of social events and high-end gatherings.
The Sinoswan Banquet is not just a means of transportation, it's a brand new social experience what is designed to create a space of unparalleled elegance for you.
◆Whether it is business negotiations, wedding celebrations, graduation celebrations, birthday parties, family gatherings or company celebrations, we can meet your diverse needs.
◆The Sinoswan Banquet not only saves you the cost of venue rental and renovation, but also brings you a more convenient, flexible and personalized banquet experience.
◆Electrical system installation: installation of RV electrical system, including inverters, controllers, lighting fixtures, sockets,electrical equipment, etc.
◆ Equipment installation: Install the furniture and equipment inside the banquet car according to the design scheme, such as projection equipment, central air conditioning and other equipment (LED screen).
◆Interior decoration: the wall and ceiling are made of environmentally friendly panels, the floor is made of wood, and the curtains are installed to create a bright, spacious and comfortable atmosphere.
The Sinoswan Banquet hall offers various decoration styles to suit diverse preferences: ◆Vienna: Classic and elegant, featuring intricate details and a sophisticated ambiance. ◆Blue Ocean: Inspired by oceanic and floral themes, creating a serene and refreshing atmosphere. ◆Fantasy 5D: High-tech holographic projection enhances the event with dynamic and vibrant visuals.
The banquet hall is available in different configurations to cater to various event requirements:
◆Container Type: Compact and highly mobile for urban environments.
◆Semi-Trailer Type: Larger space for grand events with full hydraulic expansion.
◆Truck Type: All-in-one design for flexibility and convenience.
To ensure peace of mind, the Sinoswan Banquet comes with: - A five-years warranty: on key components.
◆Lifetime technical support service: ensuring uninterrupted functionality.
◆Comprehensive Chinese and English manuals: for easy operation.
◆Free training sessions, empowering customers to utilize the banquet to its fullest poten.
The Sinoswan Banquet interior is designed with precision to create a luxurious and comfortable atmosphere.
Installation of RV electrical system, including inverters, controllers, lighting fixtures, sockets,electrical equipment, etc.
Install the furniture and equipment inside the banquet car according to the design scheme, such as projection equipment, central air conditioning and other equipment (LED screen).
The wall and ceiling are made of environmentally friendly panels, the floor is made of wood, and the curtains are installed to create a bright, spacious and comfortable atmosphere.
The Sinoswan Banquet hall offers various decoration styles to suit diverse preferences.
Vienna: Classic and elegant, featuring intricate details and a sophisticated ambiance.
Blue Ocean: Inspired by oceanic and floral themes, creating a serene and refreshing atmosphere.
Fantasy 5D: High-tech holographic projection enhances the event with dynamic and vibrant visuals.
The banquet RV is available in different configurations to cor f to vorious event requirements.
Compact and highly mobile for urbon environments.
Larger space for grand events with full hydraulic expansion.
All-in-one design for flexibility and convenience.
The Sinoswan Banquet is versatile, making it an ideal choice for various social and business occasions, including: Wedding celebrations, Business meetings, corporate events, School anniversaries , alumni reunions, Birthday parties, family gatherings, and more.
Five-year warranty
Lifelong technical support service
Chinese and English manuals
Free training
